Cabinet Hinges - Easy Installation of Bridge-Shaped Door Hinges

Rely onCabinet Hinges for all your installation requirements!

Our robust and dependable hinges simplify the installation process, ensuring you get it right the first time!

Features

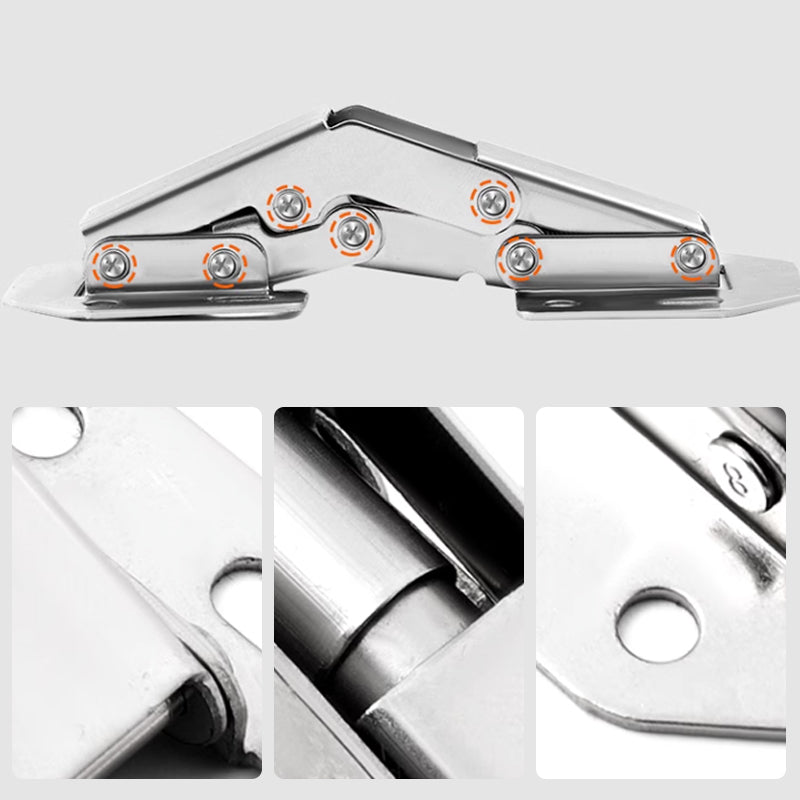

Durable and ReliableConstructed from manganese steel, recognized for its strength and longevity. This material withstands heavy use and harsh environments, making it ideal for a variety of applications. The increased thickness of the base enhances its load capacity, ensuring the cabinet door and hinges are securely anchored. Additionally, multiple thick rivets provide a stable connection, contributing to an overall stronger and more enduring structure.

Wide ApplicationEngineered to accommodate various door thicknesses. The 3-inch hinges are suited for doors with a thickness of 12-16 mm, while the 170° large hinges are compatible with doors ranging from 0-40 mm thick. This versatility makes them perfect for a broad array of cabinets and other uses.

Easy InstallationThe Cabinet Hinge Bridge-Shaped Door Hinge is designed to facilitate straightforward installation and adjustment. These hinges come with pre-drilled holes for secure fitting, and the installation process is smooth and uncomplicated. Plus, they feature adjustable screws that allow for minor tweaks to ensure the door is properly aligned. This makes it easy to guarantee that the door fits snugly and securely.

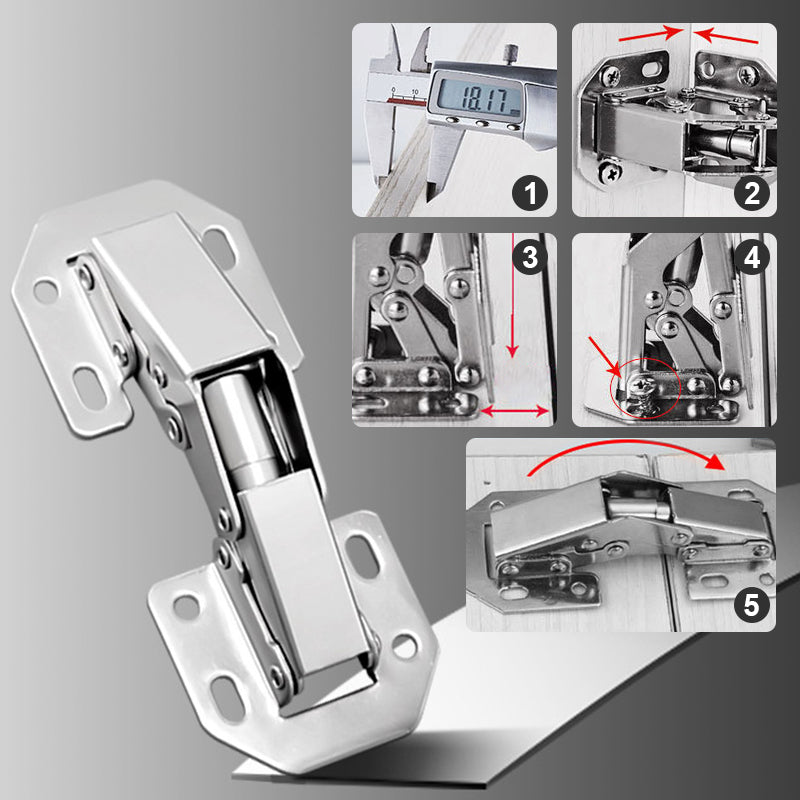

Installation Instructions

1. Measure the thickness of the door panel

2. Check the hinge's closing direction

3. Position the hinge on the door panel

4. Align and set the hinge on the door panel. Start by tightening one screw without fully securing it. Once the position is confirmed, tighten all other screws.

Specifications

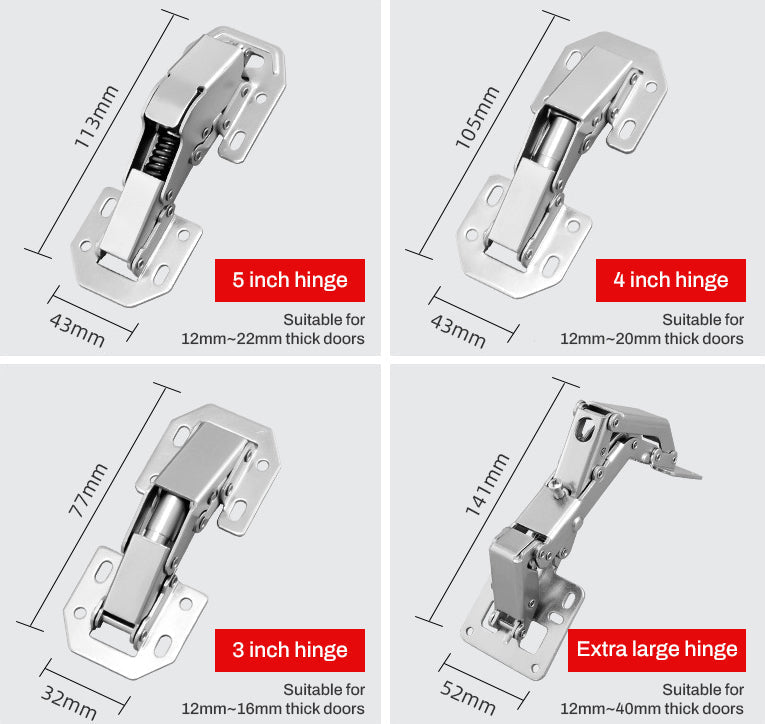

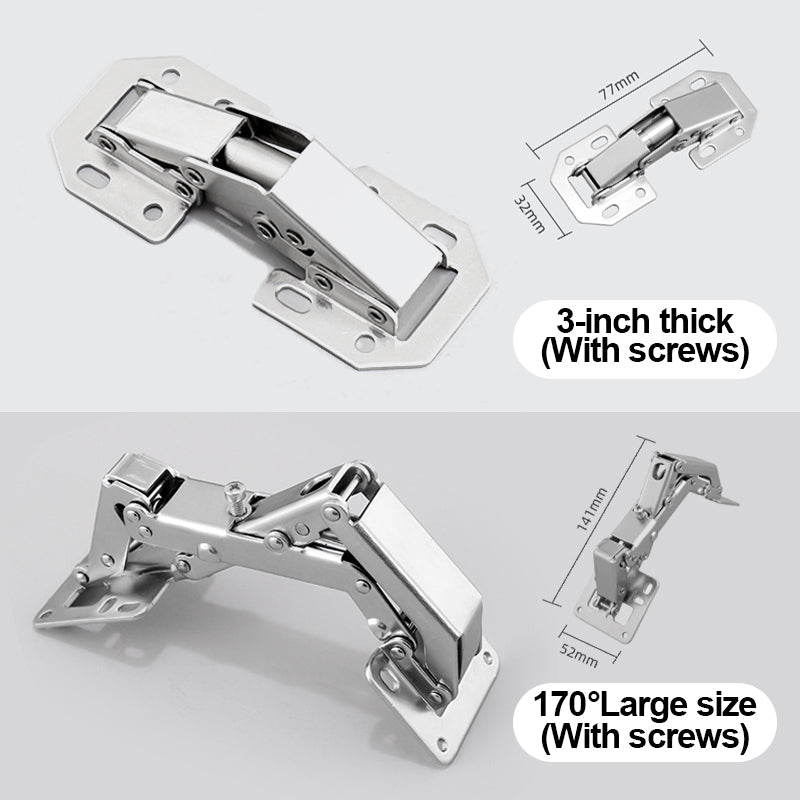

Type: 3-Inch Thickness (without Hydraulic), 4-Inch Thickness (without Hydraulic), 5-Inch Thickness (with Hydraulic), 170° Large Size (without Hydraulic), 170° Large Size (with Hydraulic)

Material: Manganese Steel

Surface Treatment: Nickel Plated

Installation Method: No drilling required, secured with self-tapping screws
