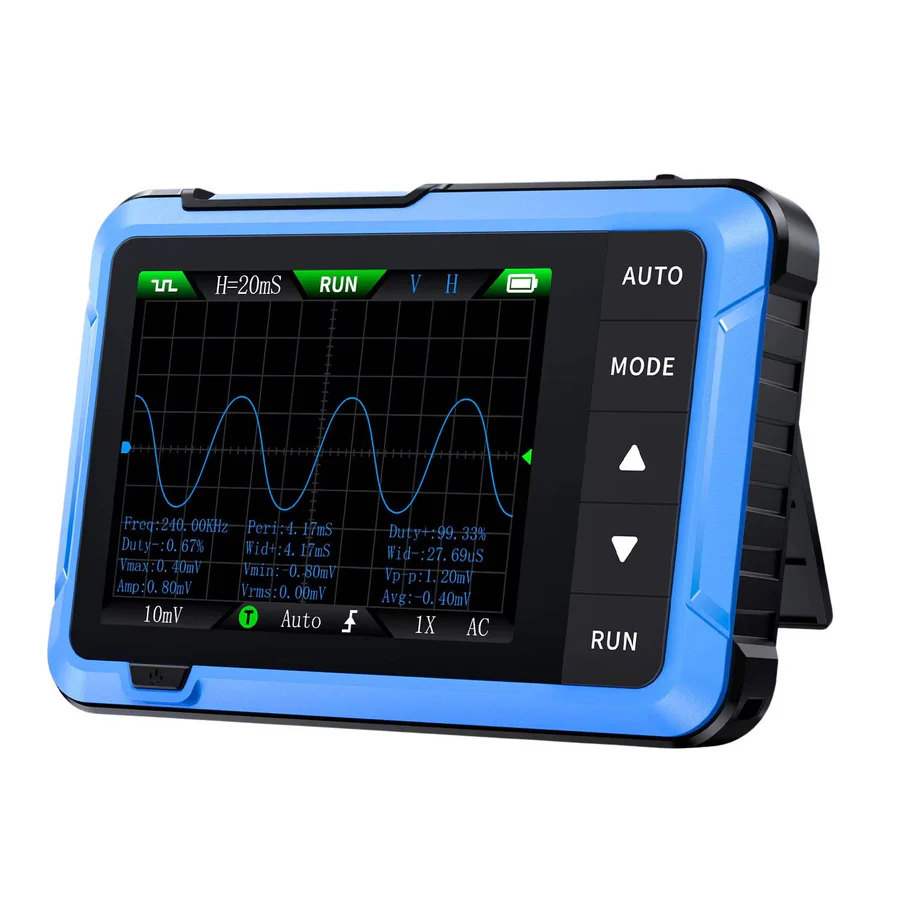

Portable Digital Oscilloscope for Circuits

Compact Testing Capability

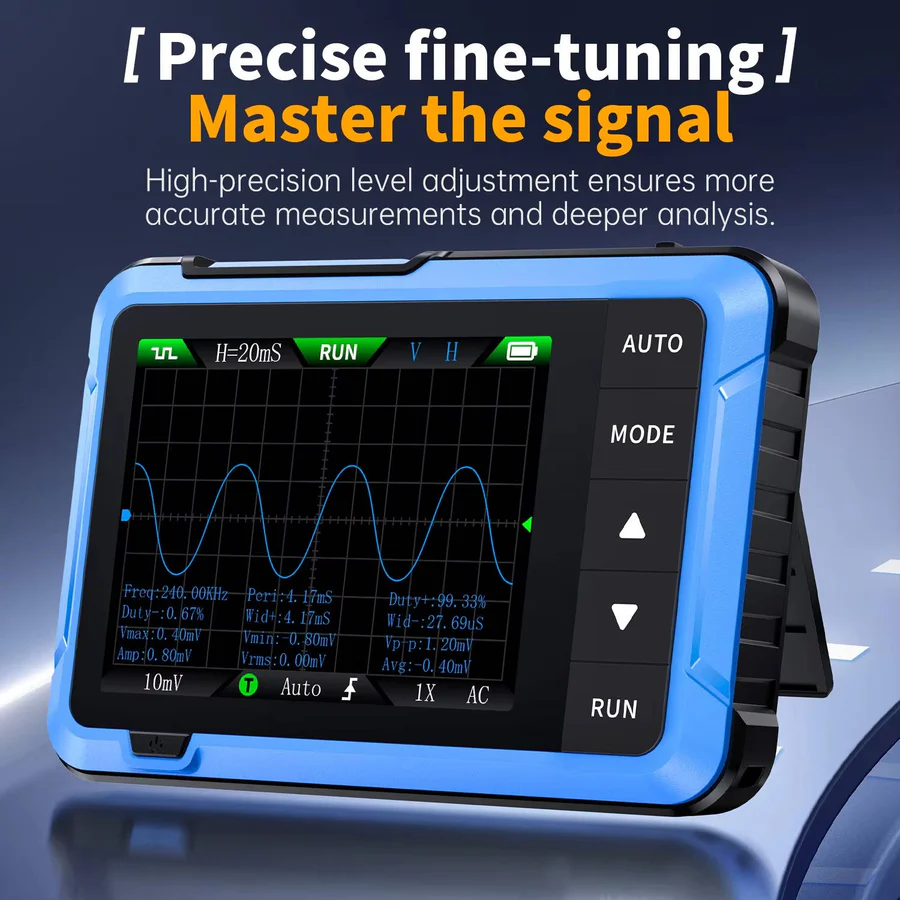

This lightweight digital oscilloscope offers circuit testing in a small, portable format. Featuring instant AUTO configuration and a vibrant LCD display, it allows for quick signal capturing without any wait.

Standard vs. Pro Editions

Select between two models tailored to your requirements. The Standard variant offers routine diagnostics, while the Pro edition provides elevated sampling rates and bandwidth for more sophisticated testing.

Dependable and Multifaceted

Both models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable battery that lasts for up to 4 hours during continuous use.

Highlighted Features

• Accurate Voltage MeasurementCapable of ±400 V range with circuit safety features.
• Real-Time Sampling Rate5 MS/s (Standard) or 48 MS/s (Pro) for precise signal acquisition.
• Bandwidth Spectrum1 MHz (Standard) or 10 MHz (Pro) designed for high-frequency evaluations.

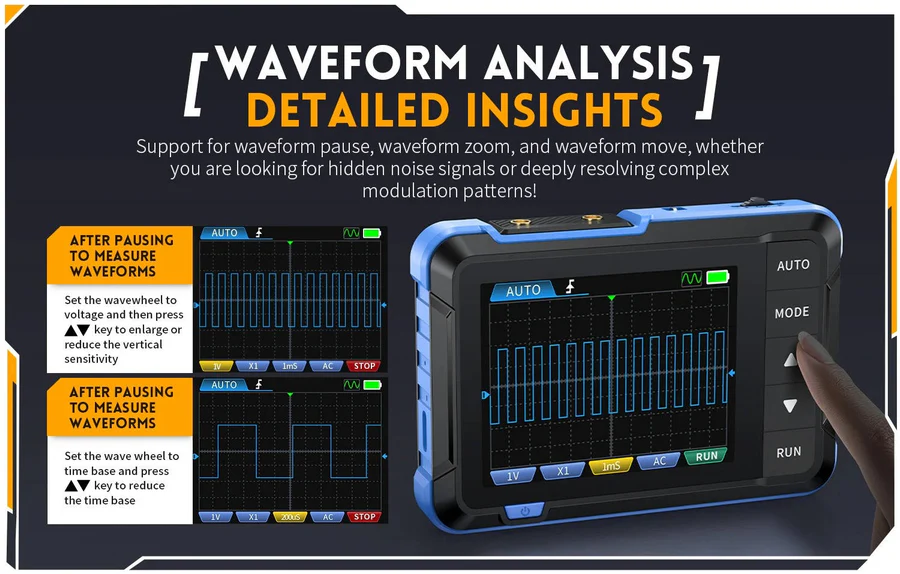

• Quick AUTO ModeInstantly adjusts settings to display waveforms with a single click.
• Bright Display2.8-inch LCD with a 320×240 resolution for clear visibility.
• Long Battery Life1000 mAh lithium-ion battery enables up to 4 hours of operation.
• Versatile Trigger ModesIncludes Single, Normal, and Auto options for diverse analysis.
• Integrated Signal GeneratorFeatures 10 kHz (Standard) or 50 kHz (Pro).

Product Details

• Display2.8-inch LCD
• Screen Resolution320×240
• Battery Capacity1000 mAh lithium
• Operating DurationUp to 4 hours
• Voltage Measurement Range±400 V
• Sampling Rate5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency10 kHz (Standard), 50 kHz (Pro)
• Weight0.5 lbs

Included Items

• 1 × Portable Digital Oscilloscope

Common Inquiries

Q: What distinguishes the Standard model from the Pro model?
A: The Standard model provides 5 MS/s sampling with a bandwidth of 1 MHz, whereas the Pro model offers 48 MS/s sampling and 10 MHz bandwidth.

Q: What is the battery life like?
A: The integrated lithium battery can provide power for up to 4 hours of steady use.

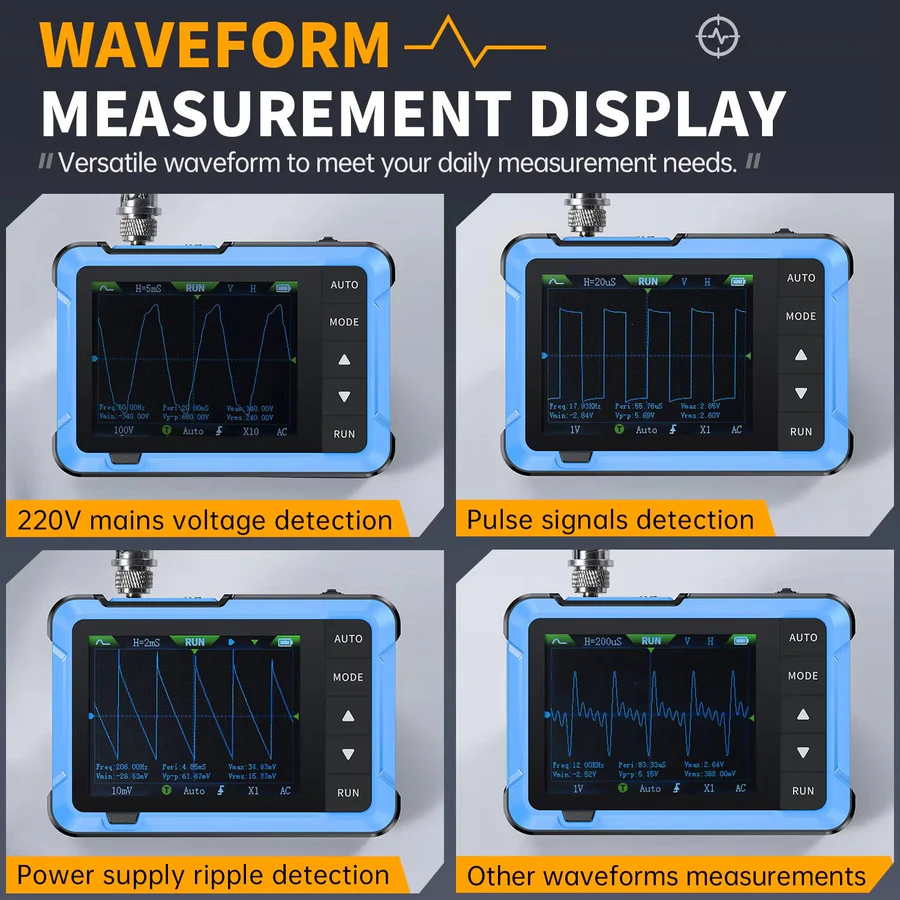

Q: Is it capable of measuring both analog and digital signals?
A: Absolutely, the oscilloscope can test both analog and digital signals.

Q: Can it handle high voltage measurements safely?
A: Yes, it can measure voltage safely up to ±400 V, thanks to its built-in safety circuits.
