Professional Digital Electric Multimeter

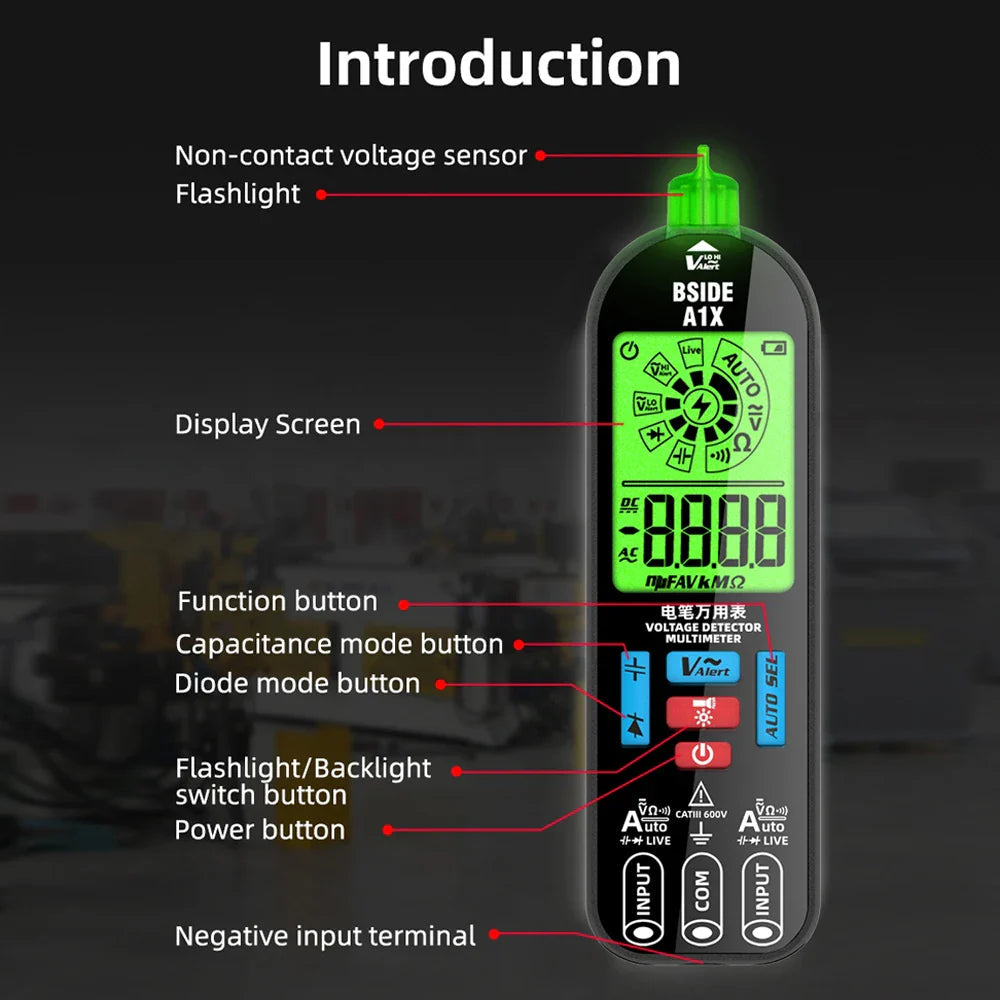

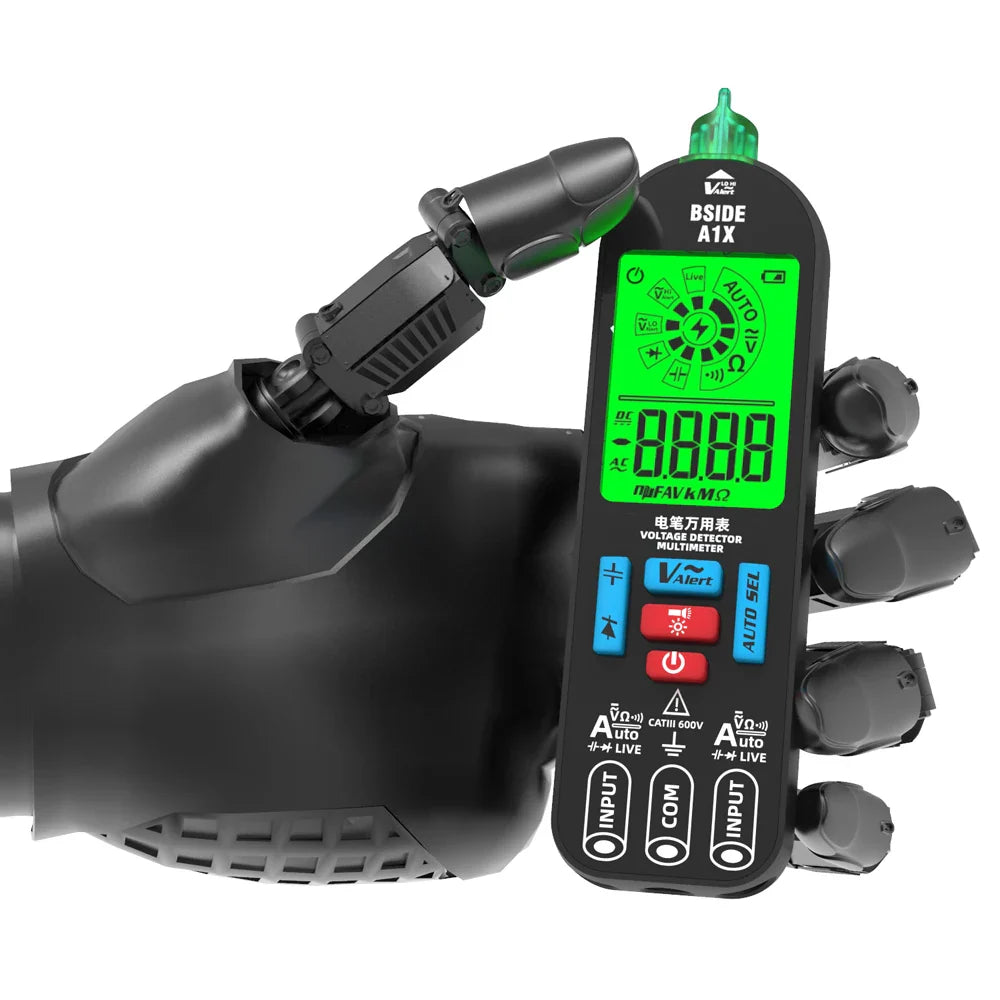

● Bid farewell to the bulky, cumbersome, and burdensome traditional pen style with this portable pen type that is small, light, and takes up no space.
● Large LCD color display, easy to use larger text, red and green backlight alarm all of these features are ideal for middle-aged and older electricians.

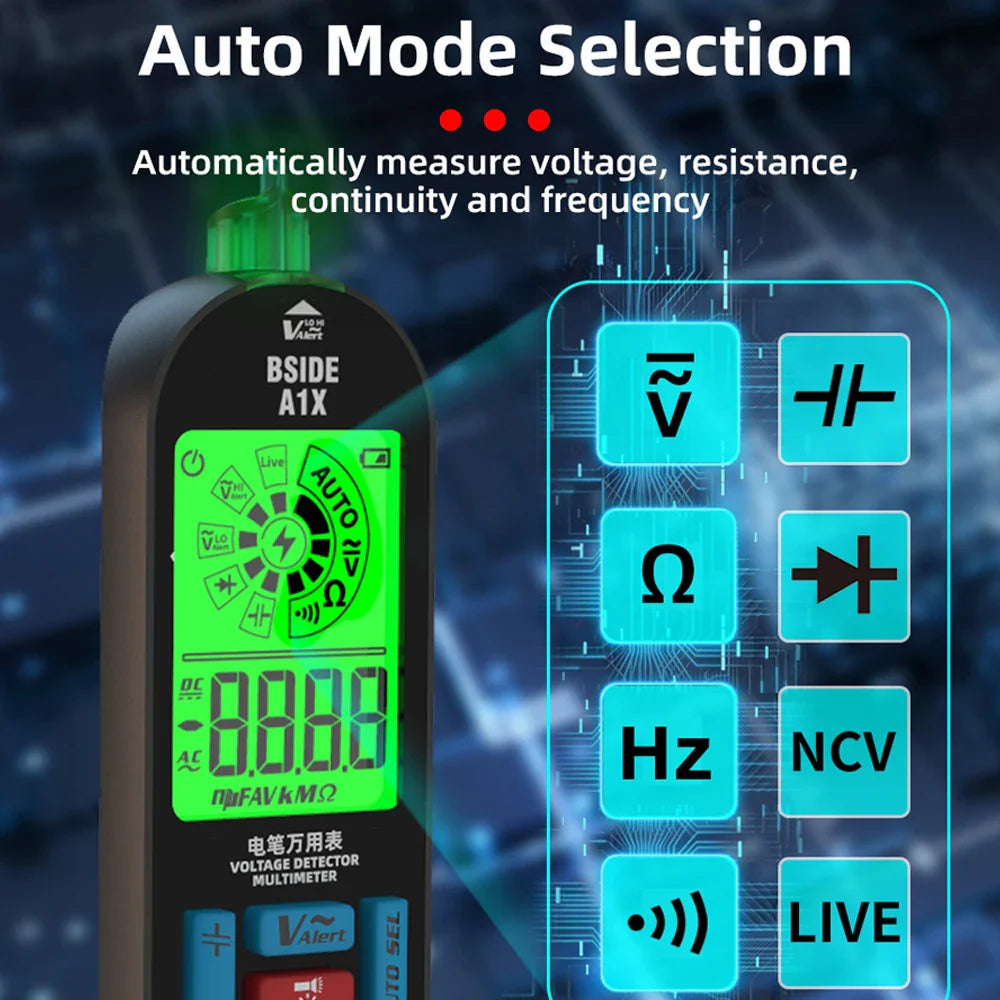

● Easy and convenient to use, power-on measurement, automatic identification of the measurement signals, no gear changes required. In order to satisfy different measuring needs, power on the direct measurement of AC and DC voltage, resistance, circuit on and off, with greater precise and more accurate measurement.

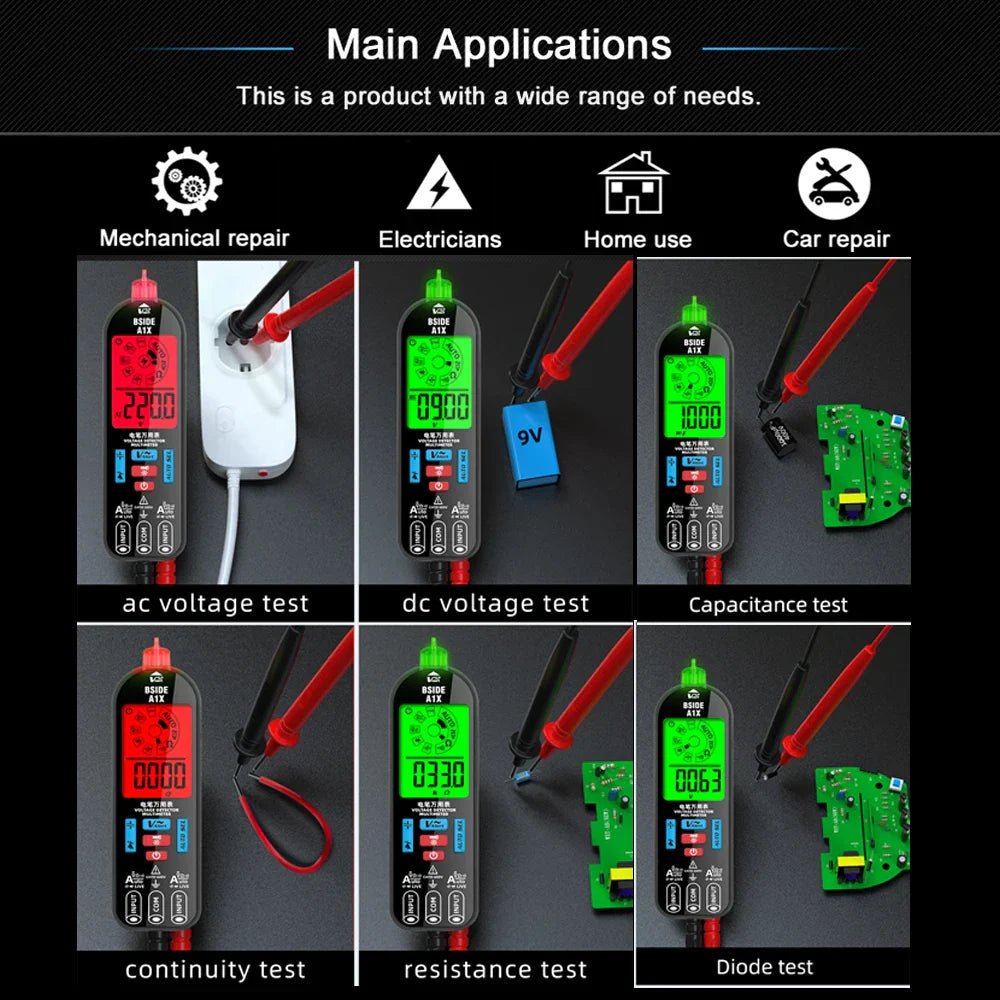

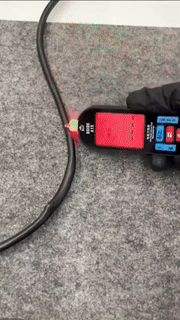

● Support live zeroline and fireline judgment, line breakpoint detection, it can measure AC voltage and DC voltage, resistance, on/off, frequency, diode, NCV induction test, live zeroline and fireline judgment. And automatic shutdown after 15 minutes of no operation.
● Sound and light alarm, with higher precise, and more accurate measurement to meet various measurement needs.

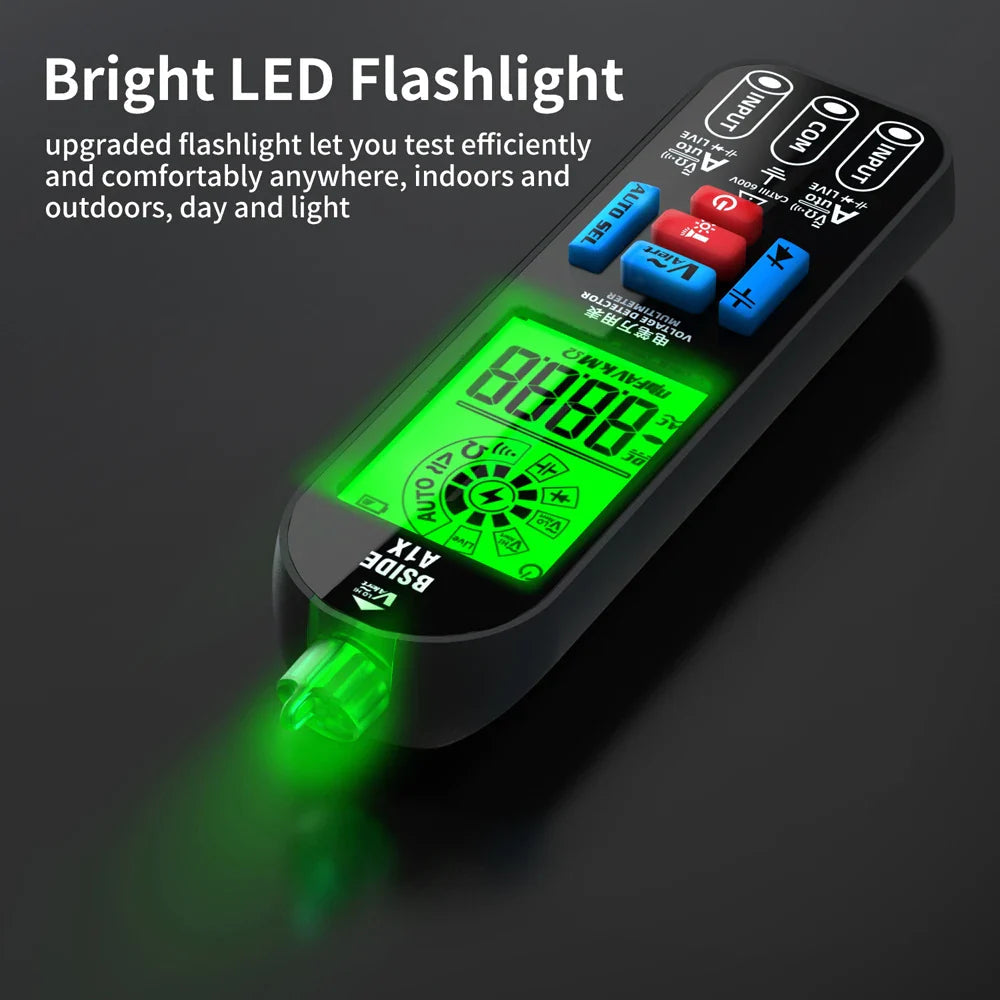

● With flashlight for easy illumination and use when measuring in dark environments.


Specification

● Material: ABS

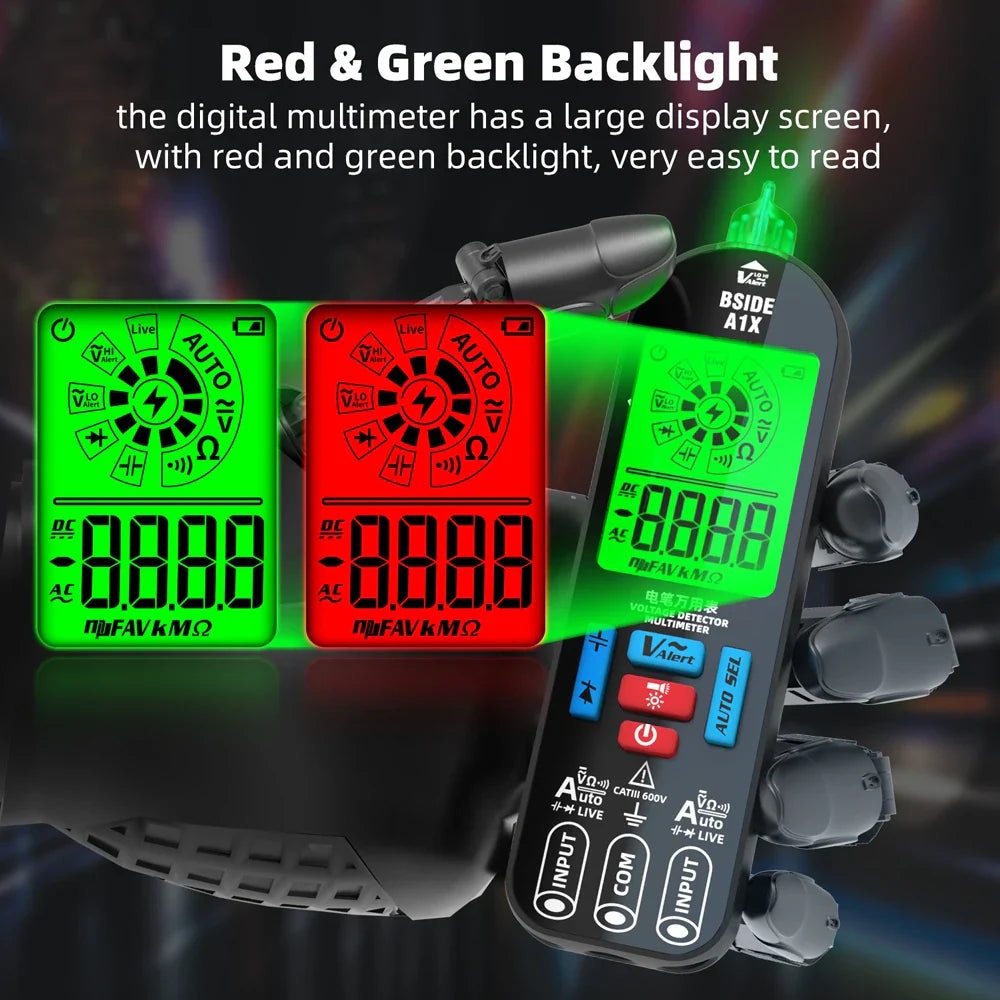

● Screen: LCD display with red and green backlight

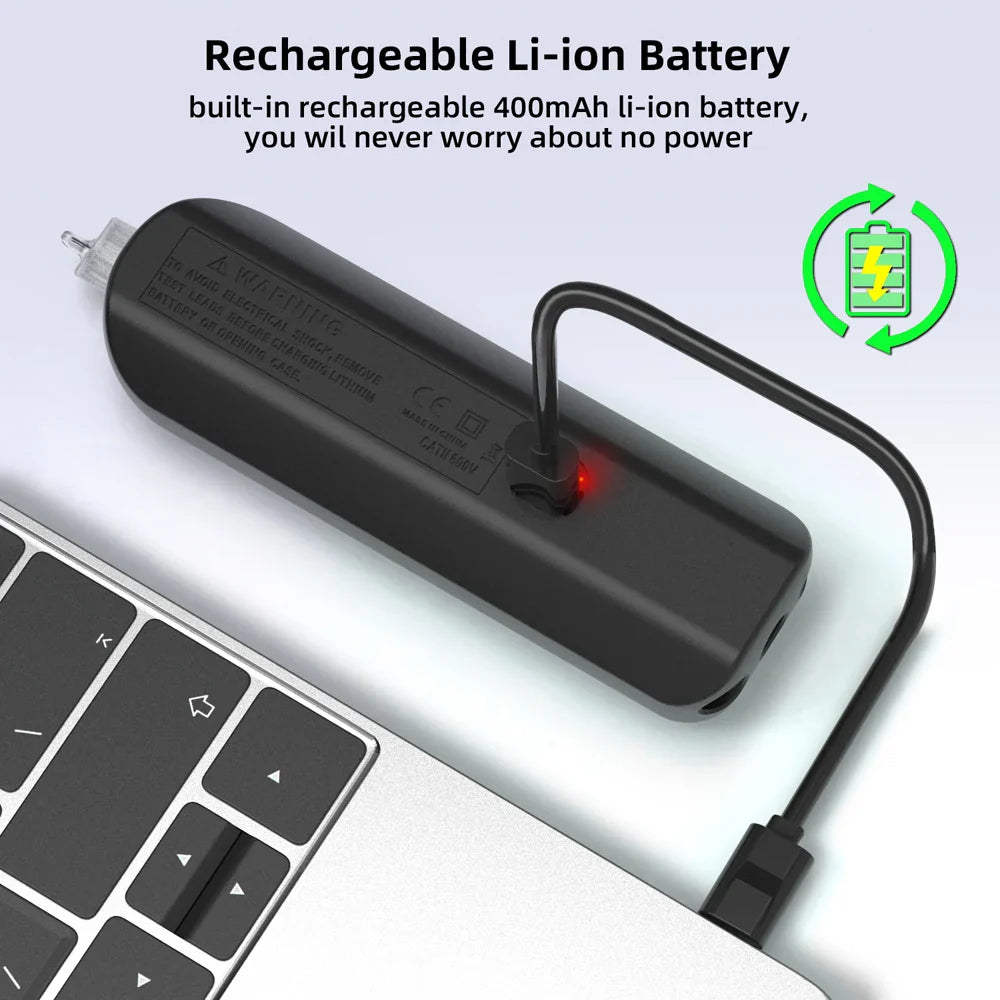

● Battery: 1 *  3.7V, 400mAh lithium battery
● DCvoltage: 0-520V (DCmode), 0.5-520V(auto mode), 0.001V, ± (0.8% +3)

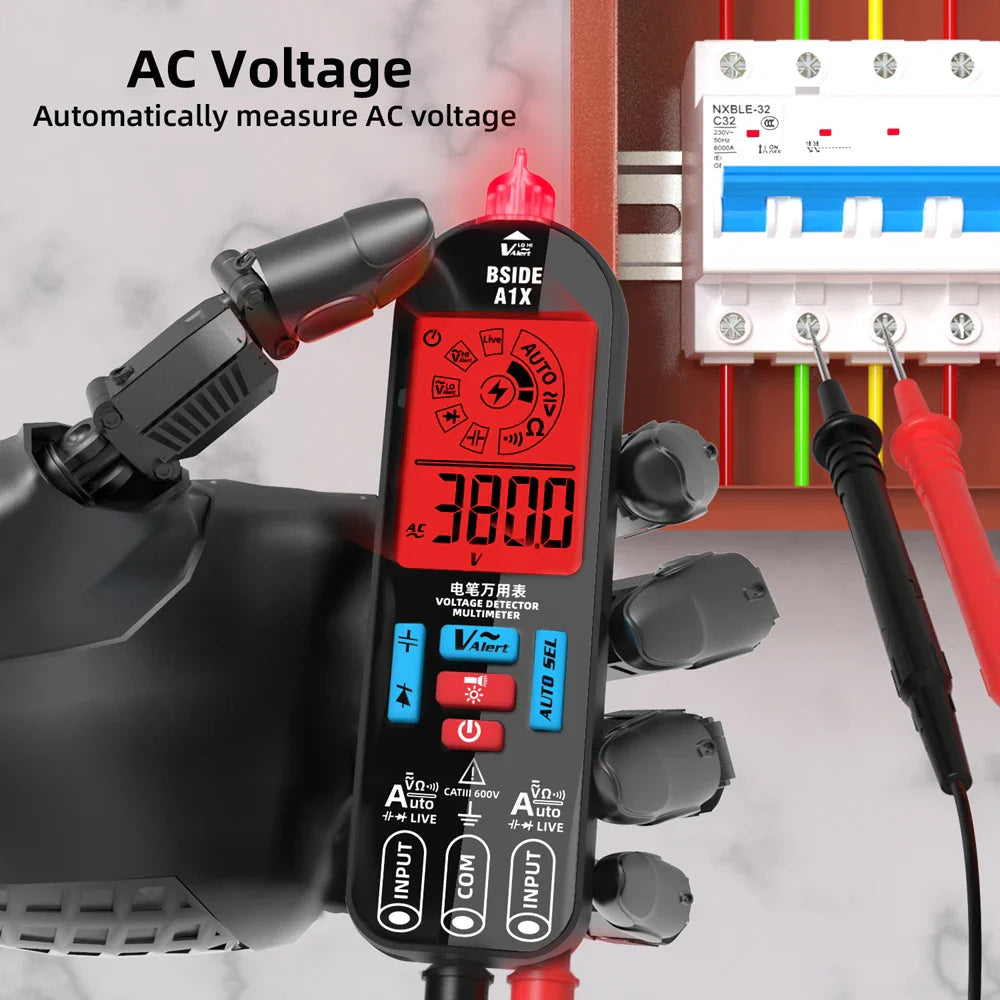

● ACvoltage: 0-520V (ACmode), 0.5-520V(auto mode), 0.001V, ±(1.2%+5)
● Resistance: 0-19.99ΜΩ, 1Ω, ±(1.2%+5)

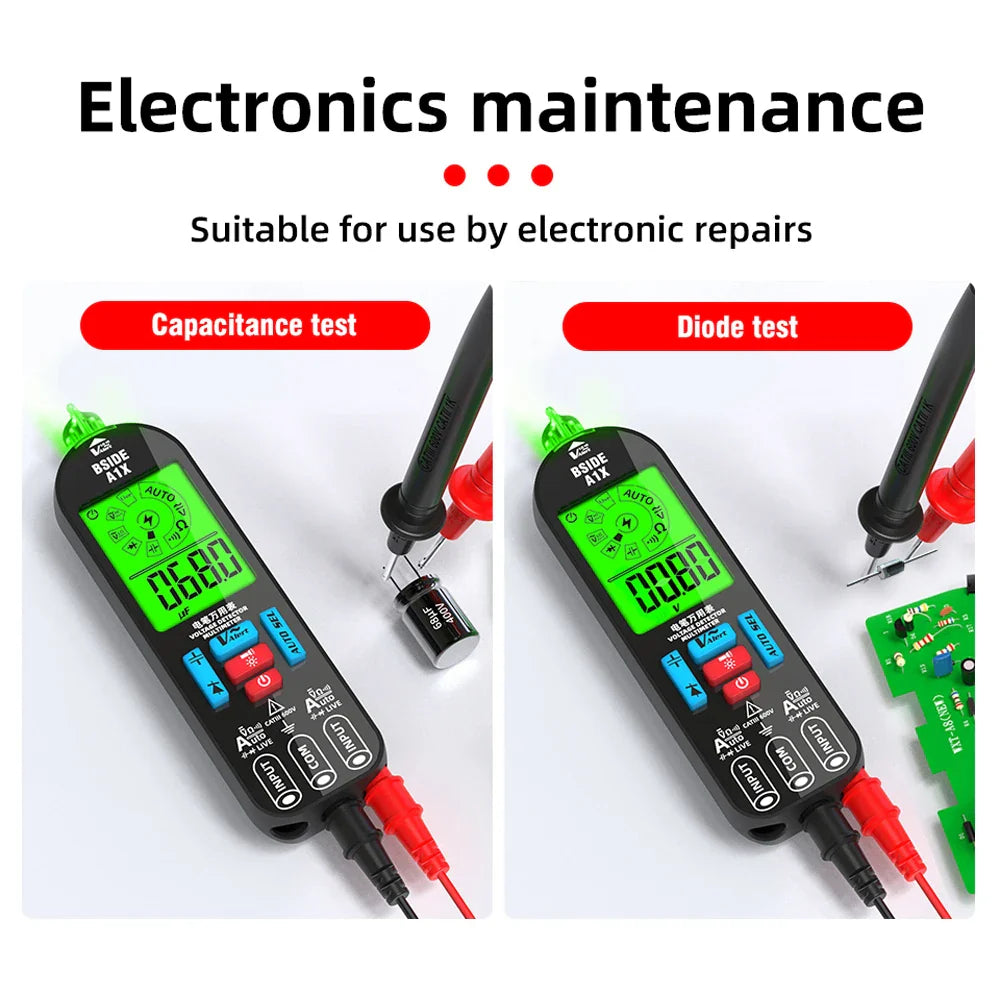

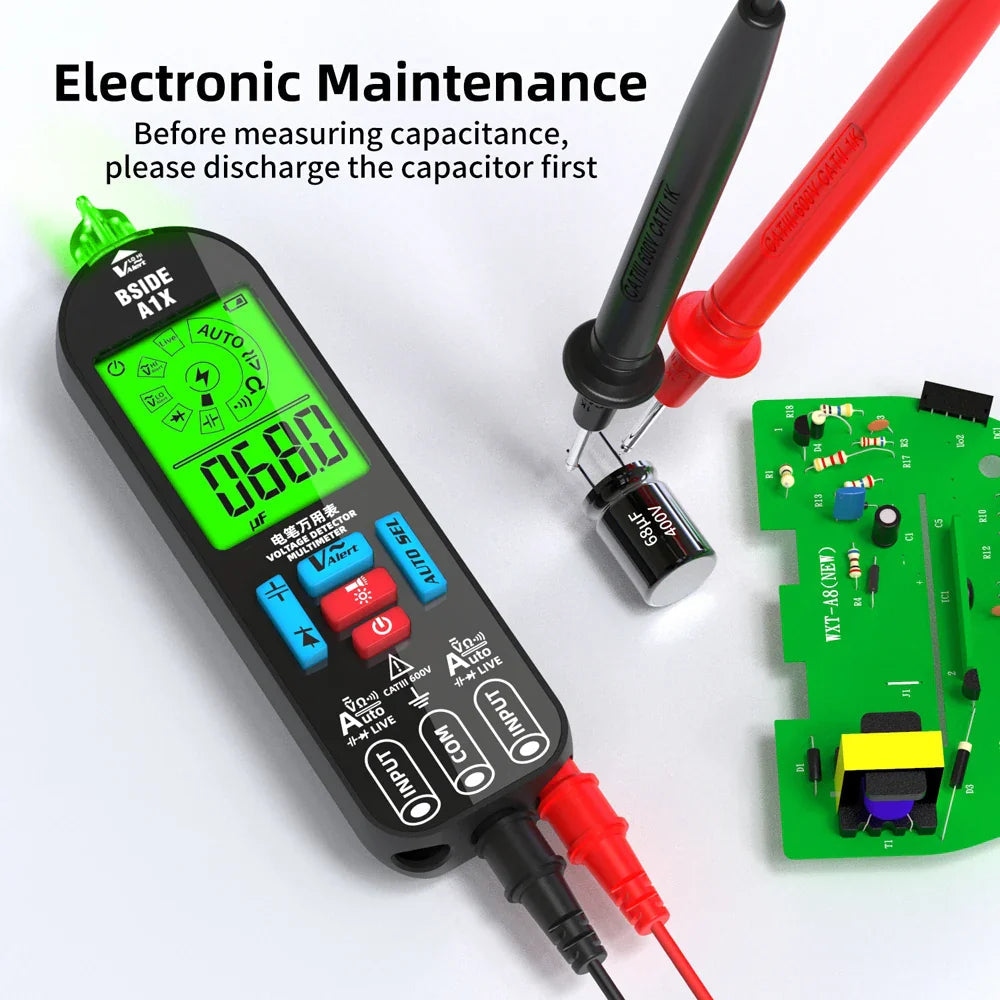

● Capacitance: 1nF-1999μF, 0.01nF,  ±(3.5%+8)
● Buzzer on/off: when the measured resistance <50Ω buzzer sounding

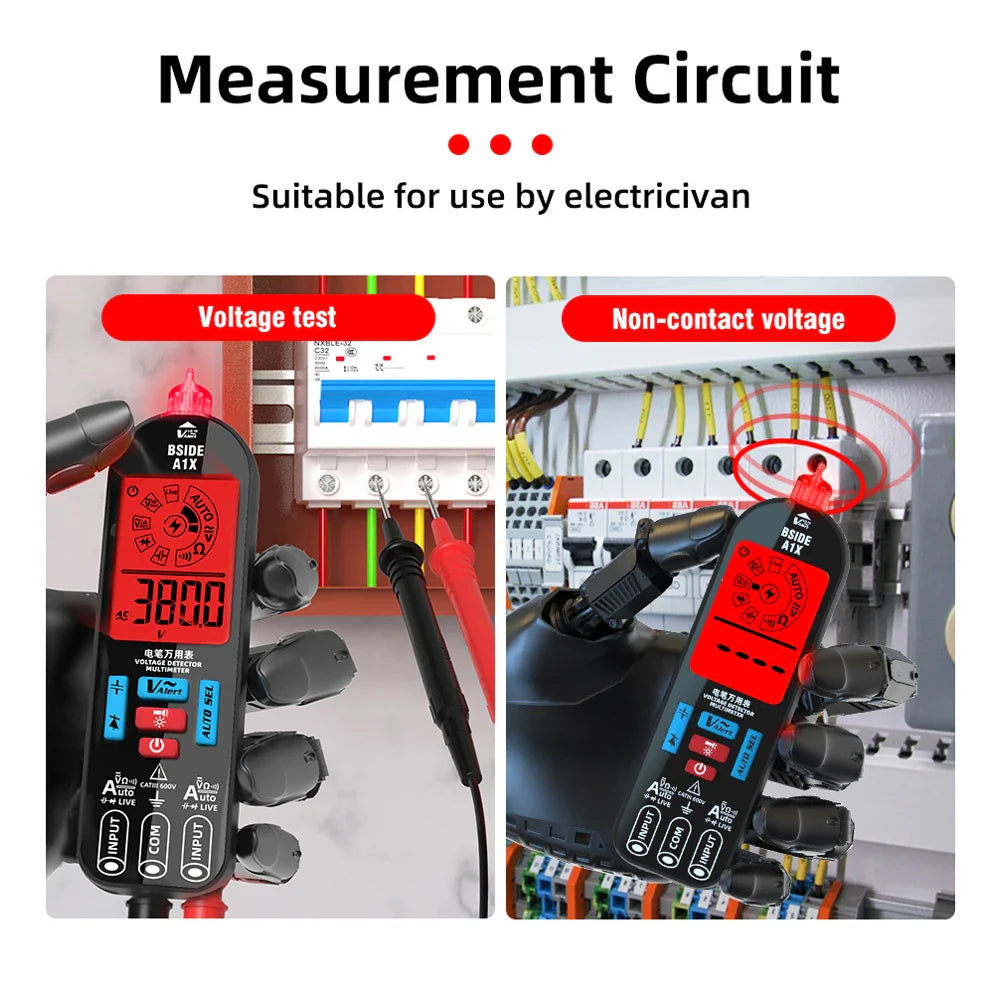

● Non-contact voltage detection alarm: support
● Firewire discrimination: yes
● Automatic shutdown: time about 15 minutes
● Flashlight: yes
● Diode measurement: less than 3V diode auto-recognition

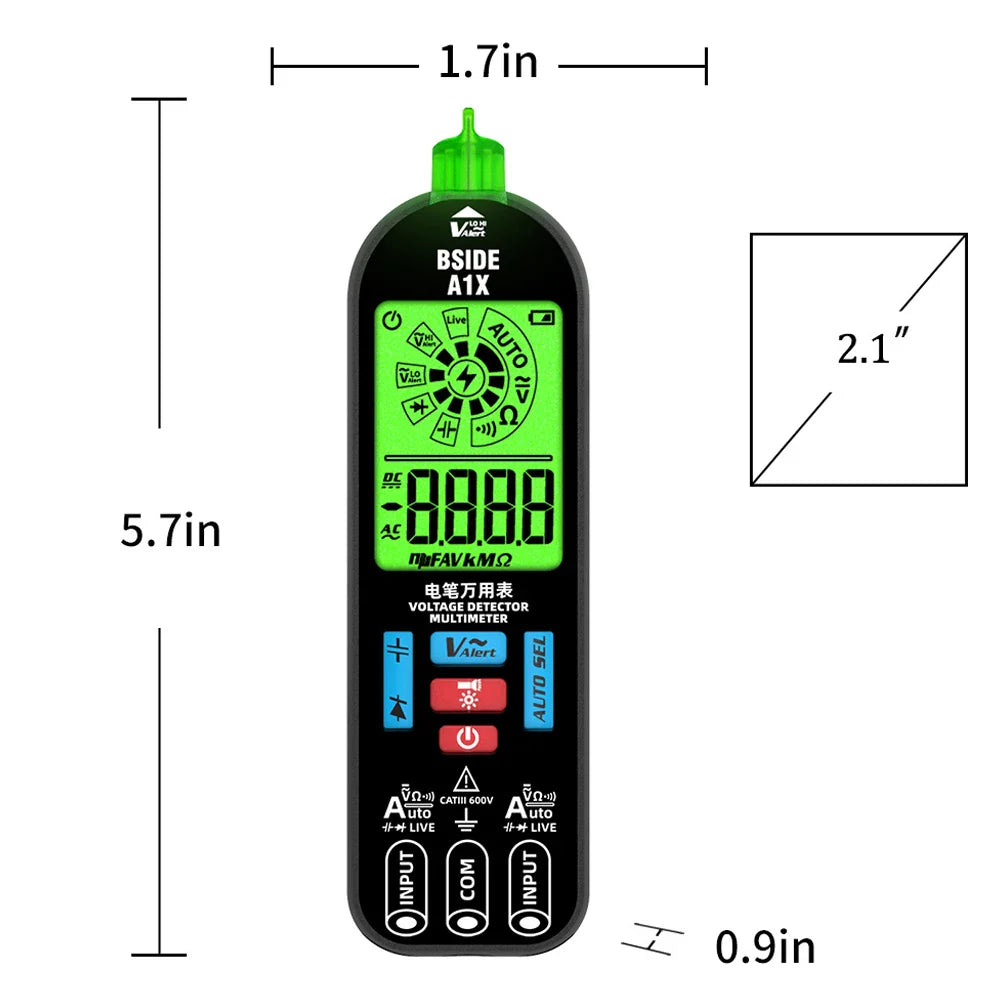

● Item size: 145 * 44 * 25mm / 5.71 * 1.73 * 0.98in
● Item weight: 73g / 2.57ounce
● Package size: 175 * 73 * 38mm / 6.89 * 2.87 * 1.50in
● Package weight: 178g / 6.28ounce

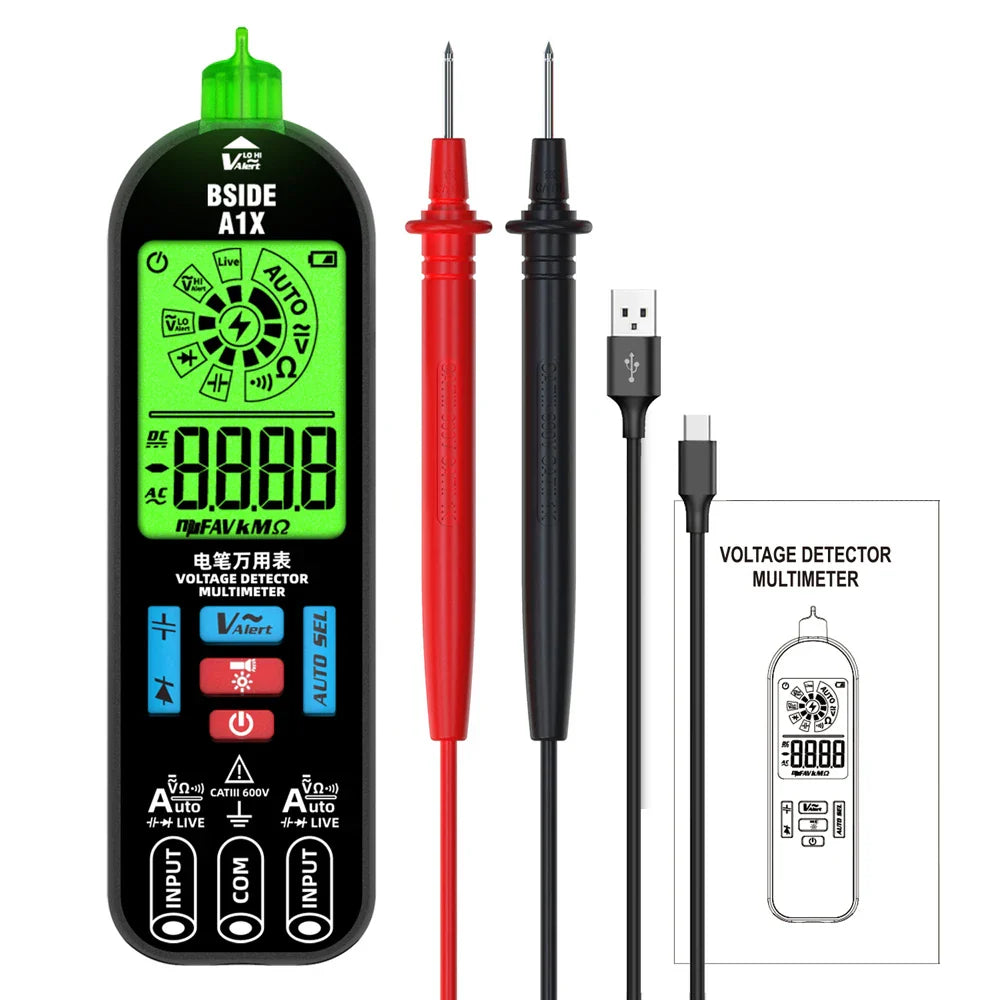

Packing List
1 * Multimeter1 * Type-C Cable1 * Guideline
